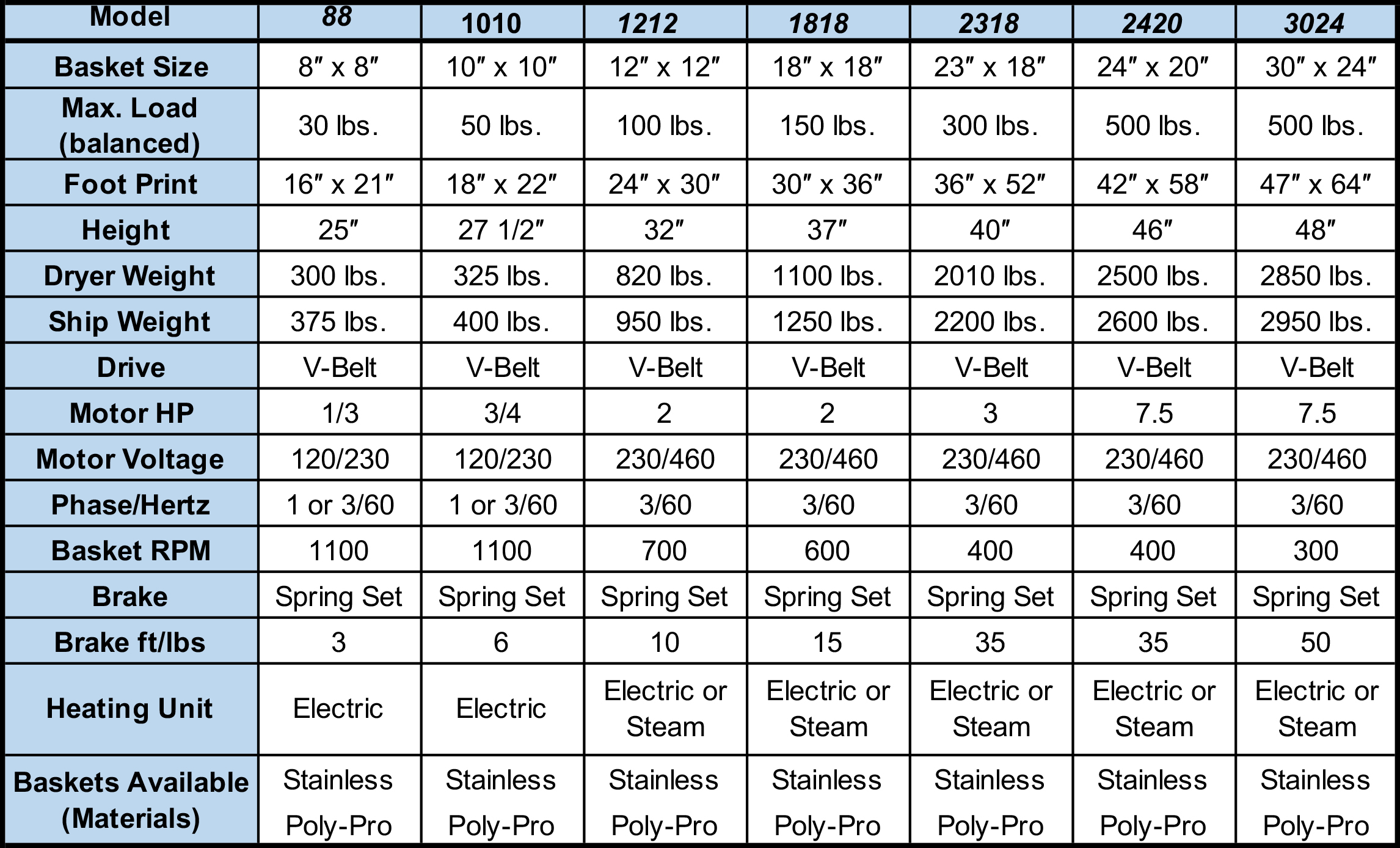

Desco Centrifugal Dryer Specifications 88B thru 3024HXC

SPECIFICATION                       DESCO DRYER MODEL NUMBER

88B 1010    1212     1818   1818 XC 1818H18 1818H23
Basket Size 8″ x 8″ 10″ x 10″ 12″ x 12″ 18″ x 18″ 18″ x 18″ 18″ x 18″ 18″ x18″
Max. Load
(balanced)
30 lbs. 50 lbs. 100 lbs. 150 lbs. 250 lbs. 250 lbs. 250 lbs.
Foot Print 16″ x 21″ 18″ x 22″ 24″ x 30″ 30″ x 36″ 30″ x 36″ 30″ x 36″ 30″ x 52″
Height  25″ 27 1/2″ 32″ 37″ 37″ 43″ 40″
Dryer Weight 300 lbs. 325 lbs. 820 lbs. 1100 lbs. 1200 lbs. 1300 lbs. 1900 lbs.
Ship Weight 375 lbs. 400 lbs. 950 lbs. 1250 lbs. 1350 lbs. 1450 lbs. 2100 lbs.
Drive V-Belt V-Belt V-Belt V-Belt V-Belt V-Belt V-Belt
Motor HP 1/3 3/4 2 2 3 3 3
Motor Voltage 120/230 120/230 230/460 230/460 230/460 230/460 230/460
Phase/Hertz 1 or 3/60 1 or 3/60 3/60 3/60 3/60 3/60 3/60
Basket RPM 1100 1100 700 600 600 600 400
Brake-Stearns Spring Set Spring Set Spring Set Spring Set Spring Set Spring Set Spring Set
Brake ft/lbs 3# 6# 10# 15# 25# 25# 25#
Heating Unit Electric Electric Electric or
Steam
Electric       or  Steam Electric     or Steam Electric or Steam Electric
or Steam
Baskets Available
(Materials)
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro

SPECIFICATION                        DESCO DRYER MODEL NUMBER

2318 2318XC  2420 3024 3024H 3024HXC
Basket Size      23″ x 18″  23″ x 18″ 24″ x 20″  30″ x 24″  30″ x 24″  30″ x 24″
Max. Load
(balanced)
300 400 500 500 800 1000
Foot Print 36″ x 52″ 36″ x 52″ 42″ x 58″ 47″ x 64″ 47″ x 64″ 47″ x 64″
Height  40″ 40″ 46″ 48″ 48″ 48″
Dryer Weight 2010 2100 2500 2850 3000 3000
Ship Weight 2200 2300 2600 2950 3200 3200
Drive V-Belt V-Belt V-Belt V-Belt V-Belt V-Belt
Motor HP 3 5 7.5 7.5 10 10
Motor Voltage 230/460 230/460 230/460 230/460 230/460 230/460
Phase/Hertz 3/60 3/60 3/60 3/60 3/60 3/60
Basket RPM 400 400 400 300 300 300
Brake-Stearns Spring Set Spring Set Spring Set Spring Set Spring Set Spring Set
Brake ft/lbs 35 35 35 50 50 75
Heating Unit Electric
or Steam
Electric
or Steam
Electric
or Steam
Electric
or Steam
Electric
or Steam
Electric
or Steam
Baskets Available
(Materials)
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro
Carbon
Stainless
Poly-Pro

Controls:

A wide range of controls, including JIC, NEMA, and IEC are available to suit individual requirements.  Control Panels with Variable Speed, Soft Starts, Timed Cycles, and Automatic Cycling can be provided as an option.

Special Features:

Special baskets or fixtures, safety interlocks, air operated covers, and other special features can be provided at extra cost.

Special “Custom” Designed Dryers for specific applications can be quoted Upon Request.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
